Description

Performance on two wheels: the Porsche eBike in cooperation with Rotwild with a full-suspension carbon frame, designed by Studio F. A. Porsche, impresses with its design and performance. It combines sporty, elegant design with powerful drive performance: the latest generation of the powerful Shimano drive unit consisting of motor, battery and electronic gears ensures effortless acceleration. The Magura disc brakes and upside-down suspension fork, along with the rear shock absorber from Fox, ensure effortless and quick braking and a high level of riding comfort. The brake hydraulics from Magura (MCI) integrated into the handlebar give the cockpit a clean look. The robust wheels from Crankbrothers ensure a stable and durable driving experience, on- and off-road.

Battery:

630 Wh capacity [size S: 504 Wh].Range [approx.]: 125km [ECO]/100km [TRAIL]/75km [BOOST].Charging: 50% in about 2 ½ hours, from 0 to 100% in about 6 hours.Battery range: these are approximate values. The actual range depends on many different factors.

Suitable frame size based on body height in metres:

Frame size S: body height 1.56-1.70 m; wheel size 27.5 inch.Frame size M: Body height 1.68-1.82 m; wheel size 29 inch.Frame size L: body size 1.80-1.94 m; wheel size 29 inch.

Highlights:

Full-suspension carbon frame with 100 mm spring deflection designed by Studio F. A. Porsche.SHIMANO EP8 motor with max. 85 Nm torque.Electronic SHIMANO XT DI2 11-speed rear derailleur.MAGURA MCi disc brakes with 4-piston front and rear brake callipers.FOX Float DPS rear shock.Light integration in stem and seat post from SUPERNOVA.Aero seat post with integrated rear light and deceleration signal.

Technical specification:

Suspension:

Rear shock: Fox Float DPSFork: Magura boltron 100mm (20x110mm)

Cockpit:

Headset: Acros RW750 1,5“Handlebar: Ergotec flatbar MCI 31,8mmStem: Porsche Custom 60mm (SP-Connect-Schnittstelle incl.)Seatpost: Aero Seatpost w/rear light (Supernova TL3 rear w/ brake light)Saddle: Ergon SM 10 Pro CarbonGrips: Ergon GA20 Black w/supernova light clamp

E-Bike-System:

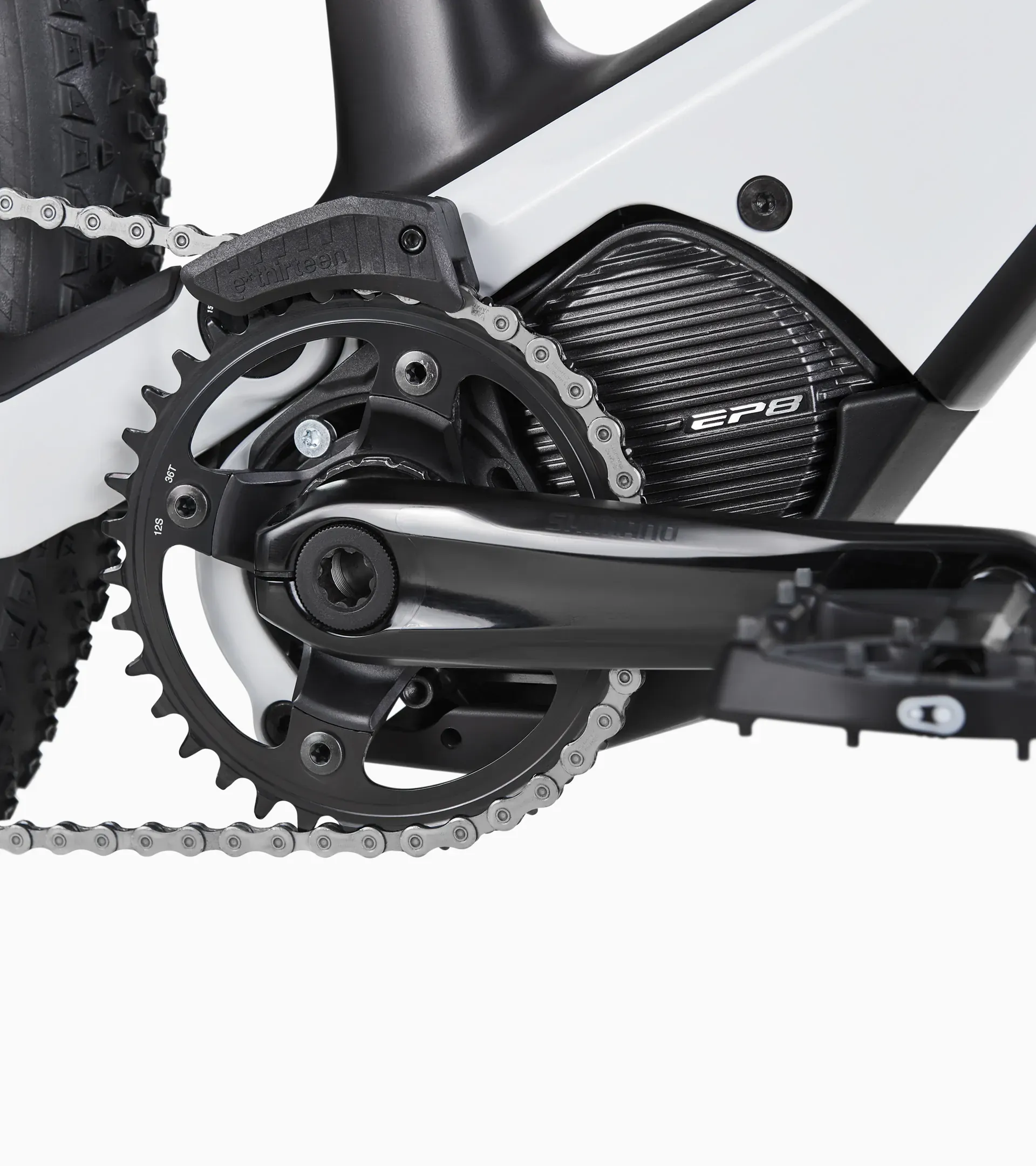

Display: Shimano SC-EN800w/31.8mm clampMotor: Shimano DU-EP800 (25km/h / 20mp/h)Battery: Shimano BT-E8036 630 Wh (Größe S: BT-E8035 504Wh)

Drivetrain:

Crankset: Shimano FC-EM900 (160mm) 165mmChainguide: Shimano SM-CRE80-B, 36TShift lever: Shimano Di2 SW-E7000-RDerailleur: Shimano XT Di2 RD-M8050 11-SpeedChain: Shimano XT CN-HG700-11Cassette: Shimano XT CS-M8000-11 (11-46T)

Brakes:

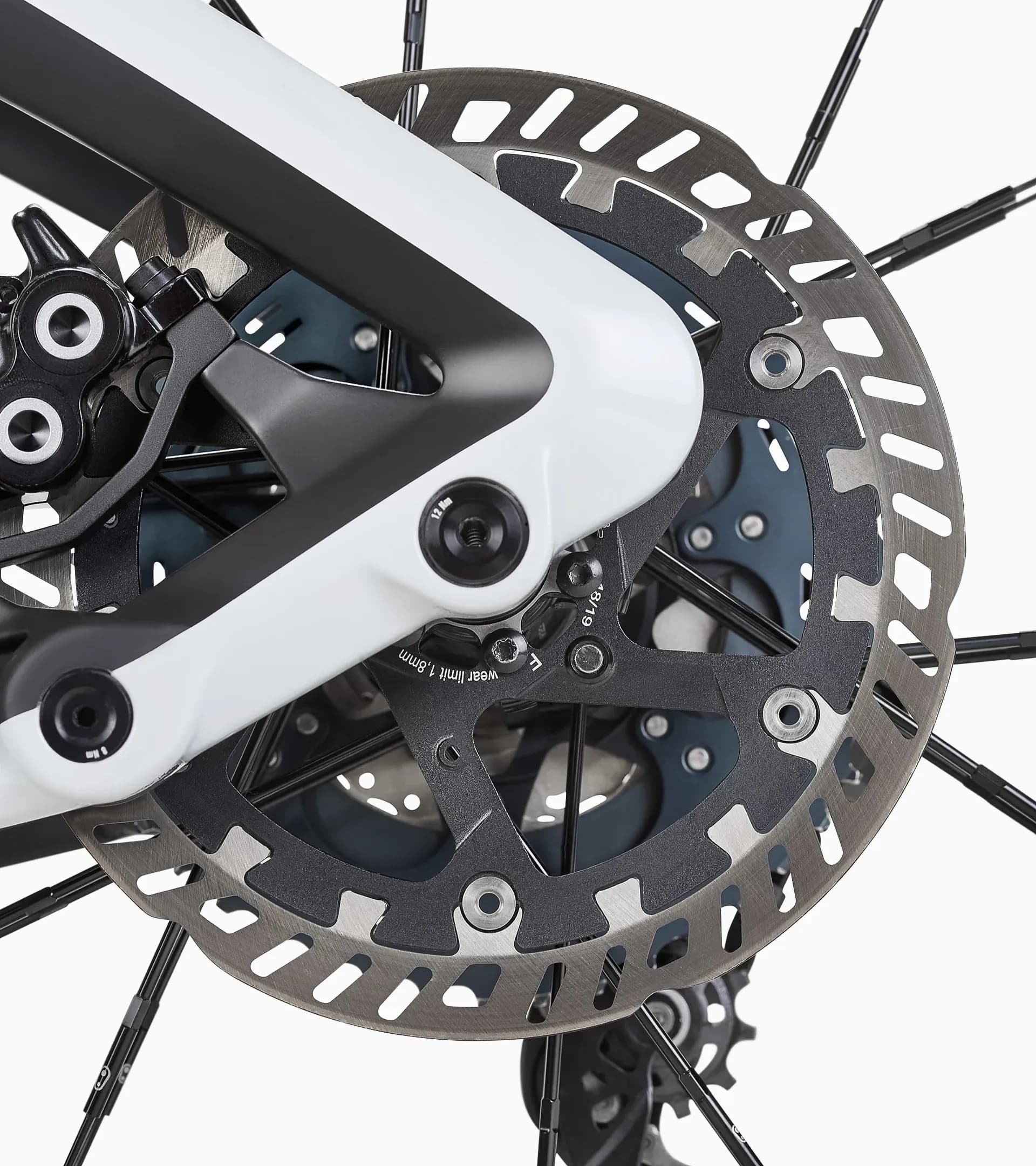

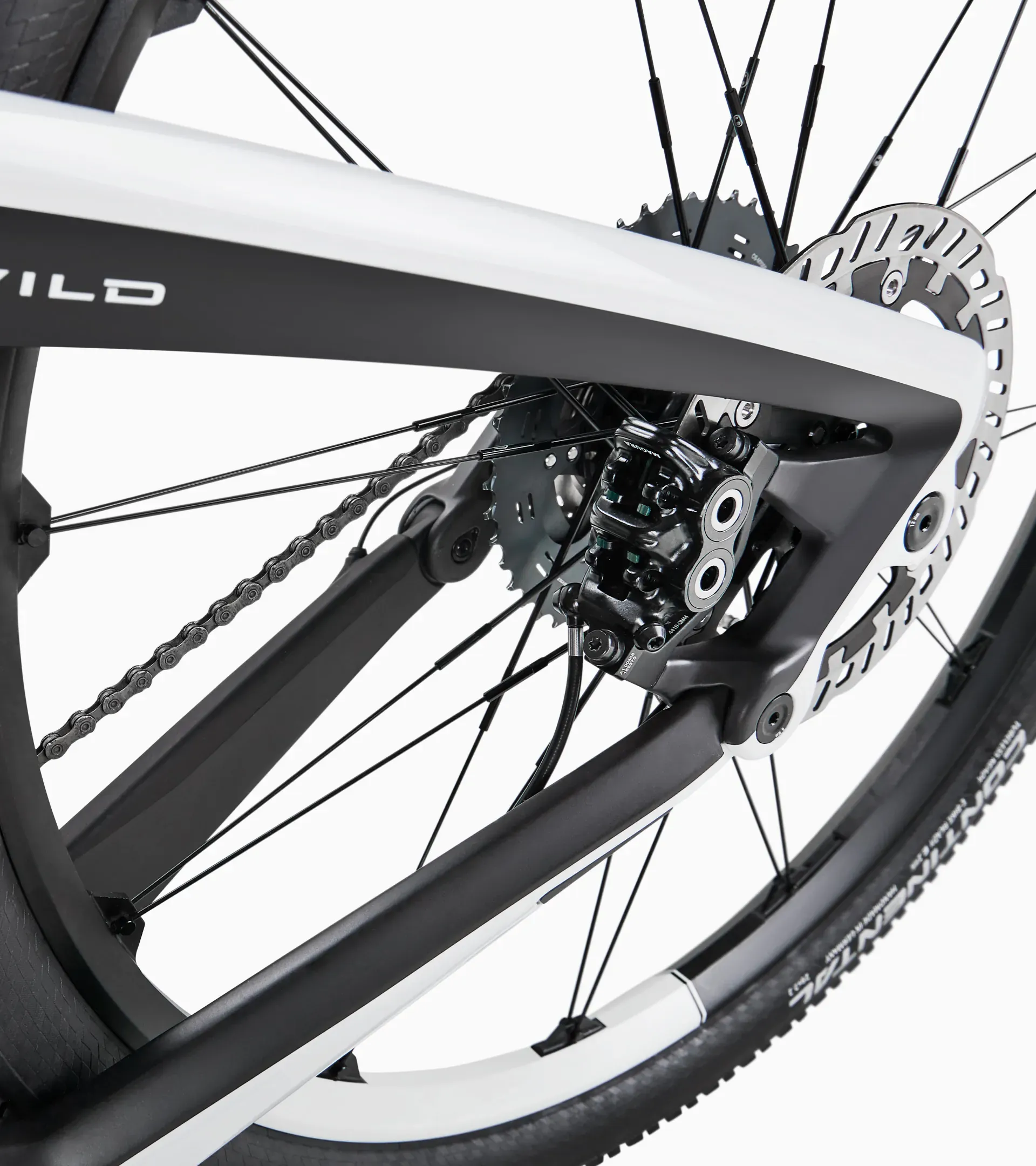

Brake: Magura MCI (4-piston front and rear)Brake disc: Magura MDR-P6-bolt (203/180mm)

Wheels:

Wheelset: Crankbrothers Iodine 2 29* (27.5*)Tires: Continental Race King 29* (27,5*) 2,2*

Accessories:

Pedals: Crankbrothers Stamp 2Light front: Supernova M99 Mini Pro 25Light rear: Supernova TL3 rear

Item no.: WAP064EBT0P00M

More Details
Dimensions: 1900 mm x 770 mm x 1050 mm
Material and care instructions
Material: carbon fiber, aluminum, plastic, others
Care Instructions: Regular cleaning of all components with a light water jet or a soft, wet sponge. Warning: Use of high pressure cleaners may cause damage to seals and bearings. Lubricate chain after each cleaning. Do not immerse in grease-dissolving detergent. Take care not to drip oil on brake discs.
Downloads
    Porsche eBike Sport 2nd Gen.
    General
    Dimensions
    1900 mm x 770 mm x 1050 mm
    Weight
    22000
    Permissible max. weight
    -
    Wheels
    Wheel Size
    29* (27,5*) 2,2*
    Wheelshet
    Crankbrothers Iodine 2 29* (27.5*)
    Tires
    Continental Race King 29* (27,5*) 2,2*
    E-Bike-System
    Motor
    Shimano DU-EP800 (25km/h / 20mp/h)
    Battery
    Shimano BT-E8036 630 Wh (S: BT-E8035 504Wh)
    Battery Capacity
    630 Wh (S: BT-E8035 504Wh)
    Display
    Shimano SC-EN800w/31.8mm clamp
    Suspension
    Rear Shock
    Fox Float DPS
    Fork
    Magura boltron 100mm (20x110mm)
    Cockpit
    Headset
    Acros RW750 1,5“
    Handlebar
    Ergotec flatbar MCI 31,8mm
    Stem
    Porsche Custom 60mm (SP-Connect incl.)
    Seatpost

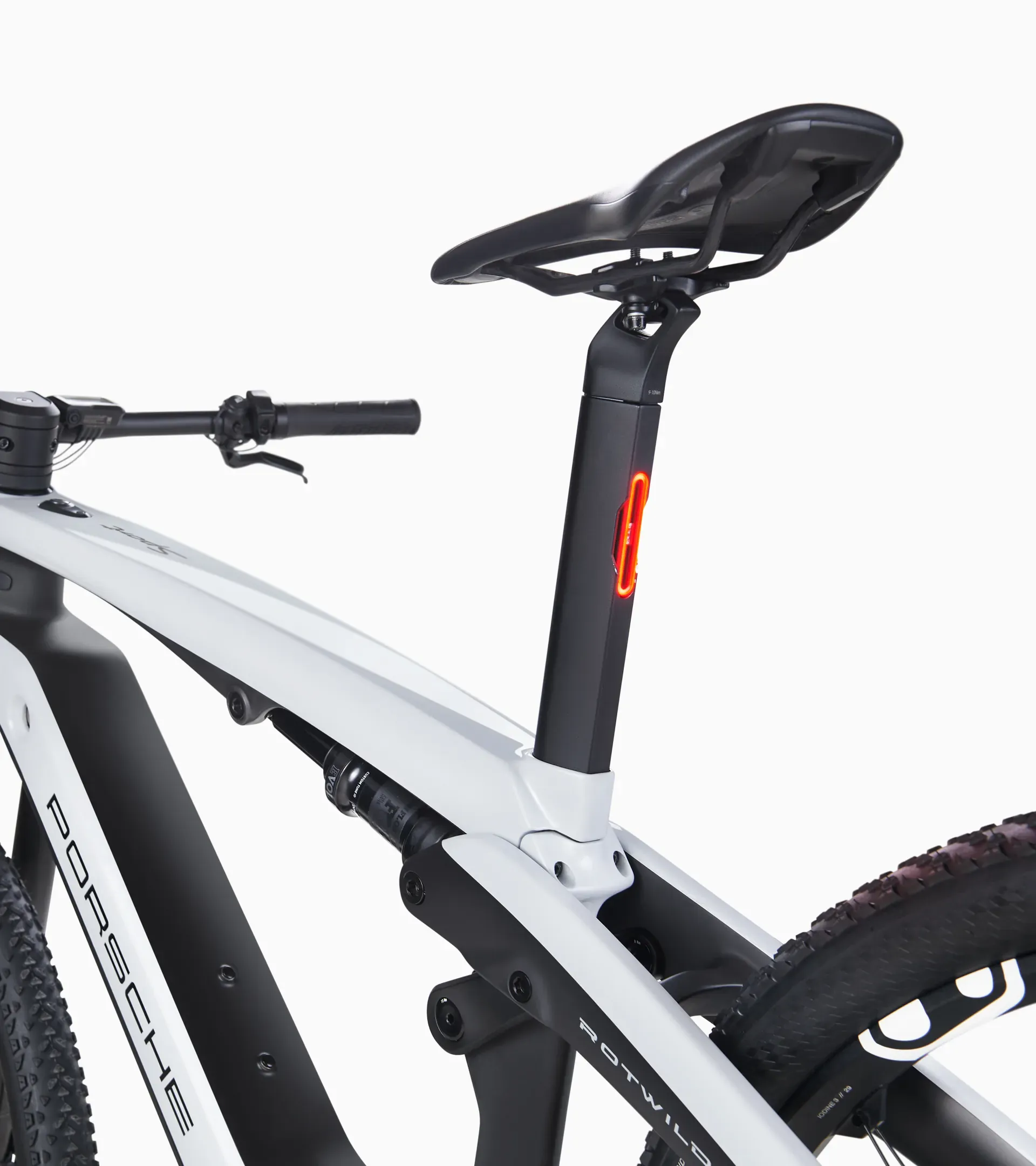

    Aero Seatpost w/rear light (Supernova TL3 rear w/ brake light)
    Saddle
    Ergon SM 10 Pro Carbon
    Grips
    Ergon GA20 Black w/supernova light clamp
    Lights
    Supernova M99 Mini Pro 25, Supernova TL3 rear
    Drivetrain
    Crankset
    Shimano FC-EM900 (160mm) 165mm
    Chainguide
    Shimano SM-CRE80-B, 36T
    Shift Lever
    Shimano Di2 SW-E7000-R
    Derailleur
    Shimano XT Di2 RD-M8050 11-Speed
    Chain
    Shimano XT CN-HG700-11
    Cassette
    Shimano XT CS-M8000-11 (11-46T)
    Brakes
    Brake
    Magura MCI (4-piston front and rear)
    Brake disk
    Magura MDR-P6-bolt (203/180mm)
    Accessories
    Pedals
    Crankbrothers stamp 2
