Porsche eBike Cross 2nd Gen.

$9,500.00excl. Tax
Porsche eBike developed in cooperation with Rotwild with frame design created by Studio F. A. Porsche Maximum e-performance thanks to the powerful Shimano motor and chassis components from Fox.
Size: -SMLEbike Size Chart
Description

Performance on two wheels: the Porsche eBike in cooperation with Rotwild with a full-suspension carbon frame, designed by Studio F. A. Porsche impresses with its design and performance. The eBike combines sporty, elegant design with powerful drive performance: the latest generation of the powerful Shimano drive unit consisting of motor, battery and mechanical gears ensures effortless acceleration. The hydraulic disc brakes from Magura, on the other hand, bring you to a standstill safely and quickly. The chassis components from Fox ensure optimally coordinated driving comfort. The robust wheels from Crankbrothers also ensure maximum directional stability off the beaten track.

Battery:

504 Wh capacity.Range [approx.]: 100km [ECO]/75km [TRAIL]/50km [BOOST].Charging: 80% in approx. 2 ½ hours, from 0 to 100% in approx. 4 hours.Battery range: These are approximate values. The actual range depends on several different factors.

Suitable frame size based on body height in metres:

Frame size S: body height 1.56-1.70 m; wheel size 27.5 inch.Frame size M: Body height 1.68-1.82 m; wheel size 29 inch.Frame size L: body size 1.80-1.94 m; wheel size 29 inch.

Highlights:

Full-suspension carbon frame with 100 mm spring deflection designed by Studio F. A. Porsche.SHIMANO EP8 motor with max. 85 Nm torque.Mechanical SHIMANO XT 12-speed rear derailleur.MAGURA MT Trail disc brakes.FOX Float DPS rear shock.FOX 34 Float Performance suspension fork with 120 mm spring deflection.CRANKBROTHERS Highline 3 height-adjustable seat post with handlebar remote control.

Technical specification:

Suspension:

Rear shock: Fox Float DPSFork: Fox 34 Float Performance 120mm, Boost

Cockpit:

Headset: Acros RW750 1,5“Handlebar: B280 Riser 35mm 740mmStem: S140 STEM-35 50MMSeatpost: Crankbrothers Highline 3 150mmSaddle: Ergon SM CompGrips: Ergon GA20 Black mit Endkappe

E-Bike-System:

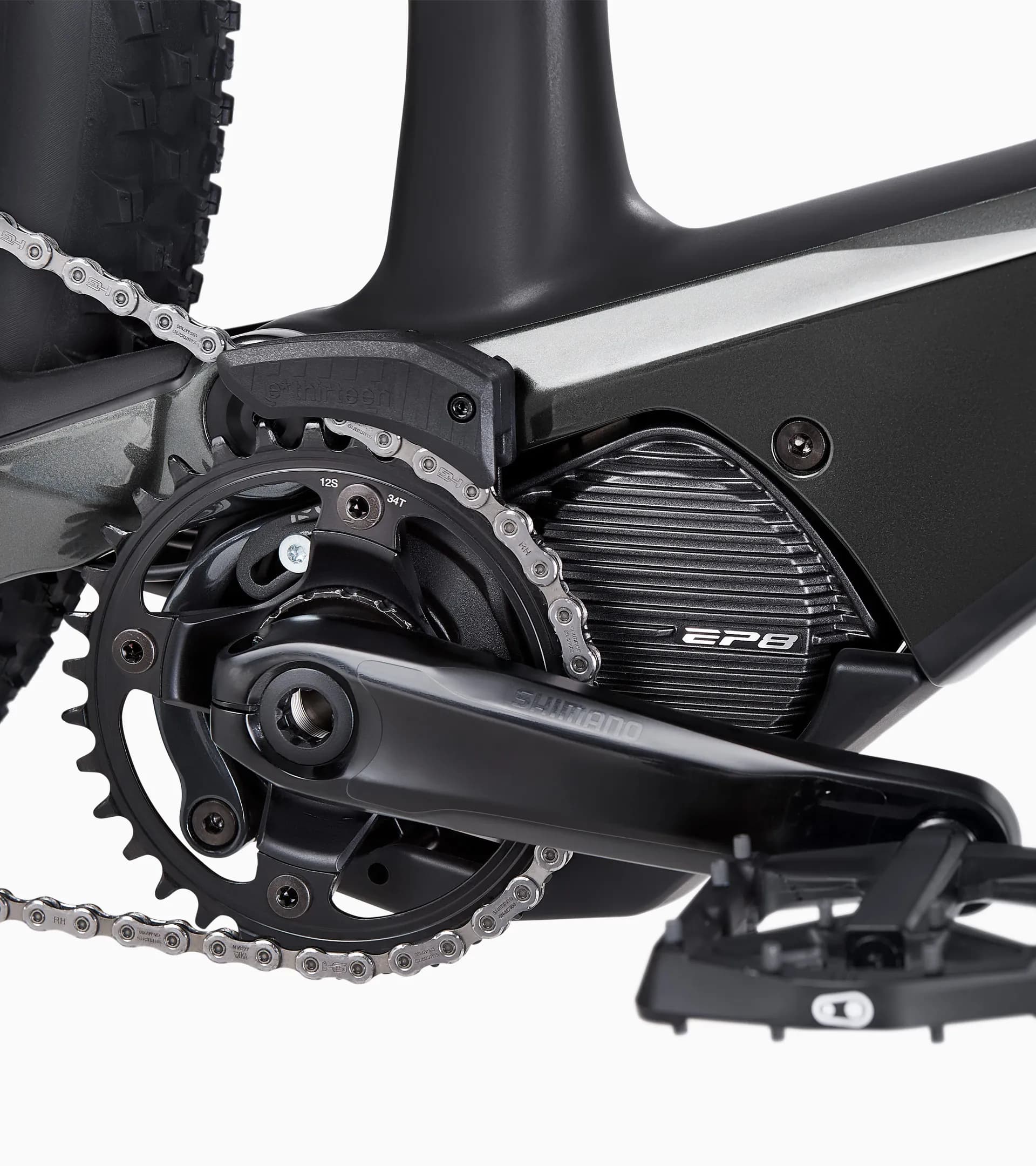

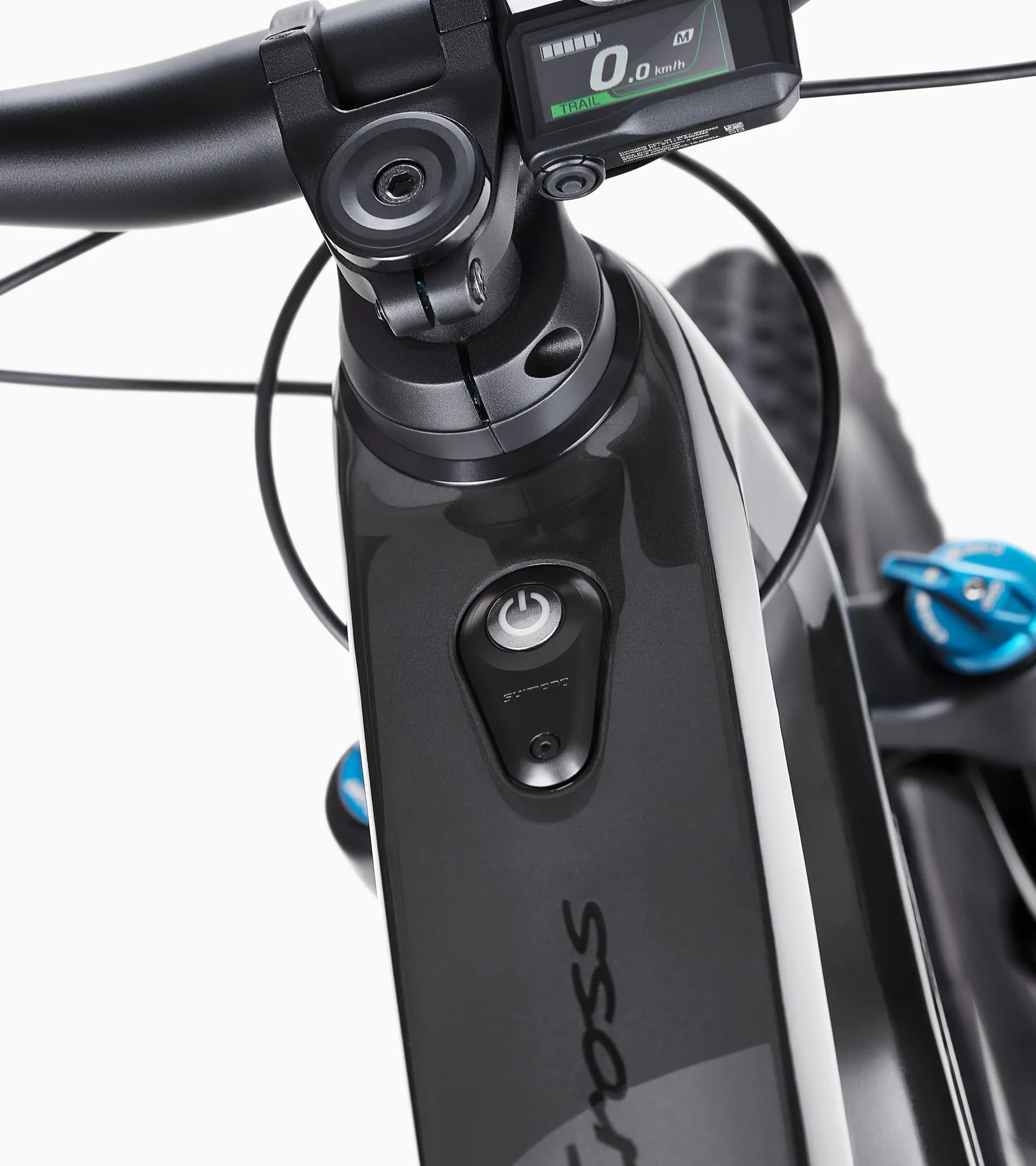

Display: Shimano SC-EM800w/35mm clampMotor: Shimano DU-EP800 (25km/h /20mp/h)Battery: Shimano BT-E8035-L 504 Wh (Größe S: BT-8035 504 Wh)

Drivetrain:

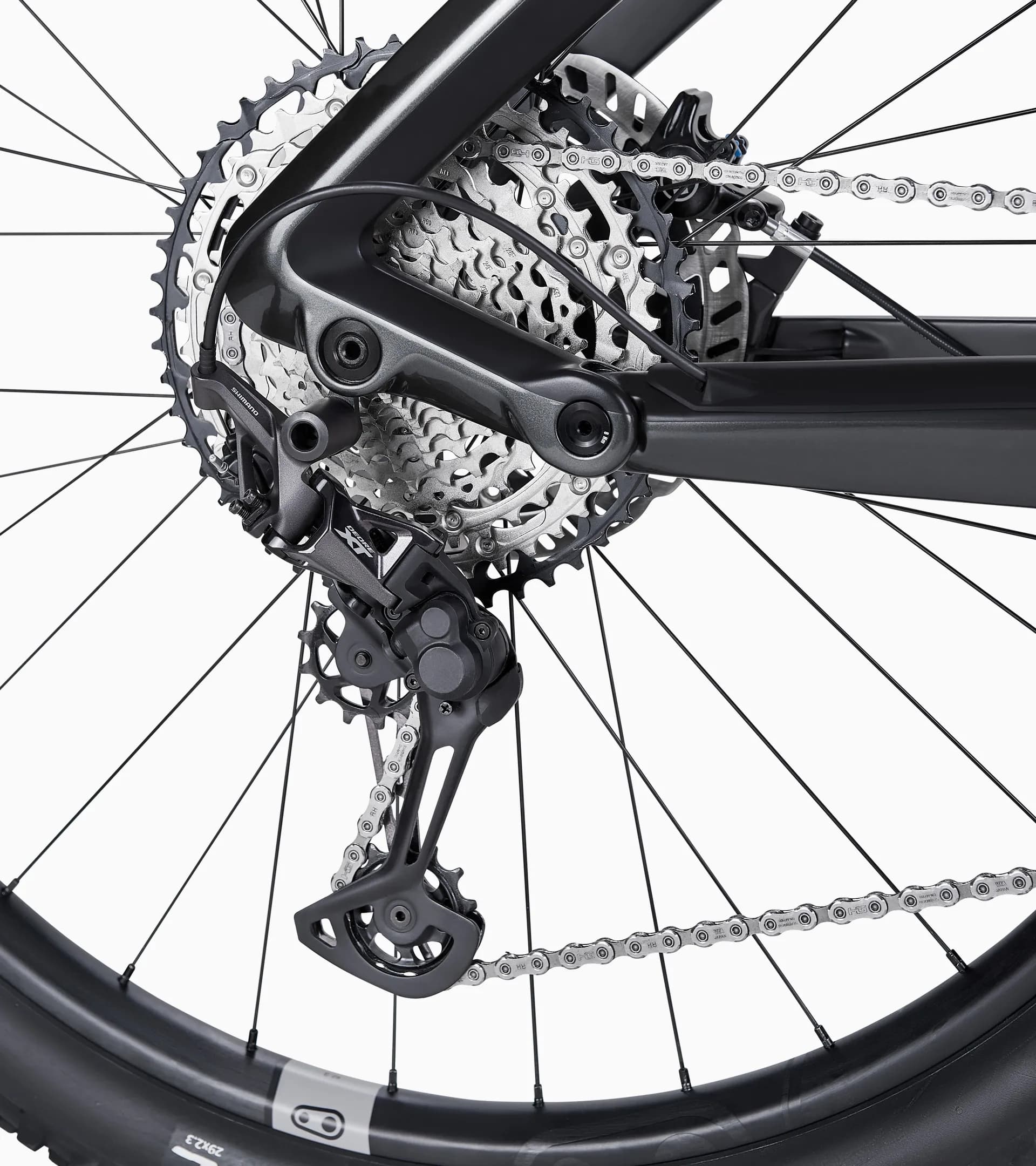

Crankset: Shimano FC-E8150(160mm) 165mmChainguide: Shimano SM-CRE80-B, 36TShift lever: Shimano XT SL-M8100-R 12-speed I-SpecDerailleur: Shimano XT RD-M8100 12-Speed Shadow+Chain: Shimano SLX CN-HG7100-12Cassette: Shimano CS-M6100-12 (10-51T)

Brakes:

Brake: Magura MT Trail (4-piston front/2-piston rear)Brake disc: Magura MDR-P6-bolt (203/180mm)

Wheels:

Wheelset: Crankbrothers Synthesis Enduro Alloy 29* (27,5*)Tires: Continental Cross King 29* (27.5*) 2,3*/2,2*

Accessories:

Pedals: Crankbrothers Stamp 2

Item no.: WAP065EBS0P00M

Dimensions and weight
Dimensions
1900 mm x 770 mm x 1050 mm
Material and care instructions
Material
Carbon fiber, aluminum, plastic, others
Care Instructions
Regular cleaning of all components with a light water jet or a soft, wet sponge. Warning: Use of high pressure cleaners may cause damage to seals and bearings. Lubricate chain after each cleaning. Do not immerse in grease-dissolving detergent. Take care not to drip oil on brake discs.
General characteristics
Size
M
Color
Dark Grey
Permissible max. weight
-
Wheels
Wheel size
29* (27.5*) 2,3*/2,2*
Tires
Continental Cross King 29* (27.5*) 2,3*/2,2*
Suspension
Rear shock
Fox Float DPS
Fork
Fox 34 Float Performance 120mm, Boost
Cockpit
Headset
Acros RW750 1,5“
Handlebar
B280 Riser 35mm 740mm
Stem
S140 STEM-35 50MM
Seat post
Crankbrothers Highline 3 150mm
Saddle
Ergon SM Comp
Grips
Ergon GA20 Black
Lights
-
Display
Shimano SC-EM800w/35mm clamp
Drivetrain
Motor
Shimano DU-EP800 (25km/h / 20mp/h)
Battery
Shimano BT-E8035-L 504 Wh (S: BT-8035 504 Wh)
Battery capacity
504 Wh (S: BT-8035 504 Wh)
Crankset
Shimano FC-E8150(160mm) 165mm
Chain guide
Shimano SM-CRE80-B, 36T
Shift lever
Shimano XT SL-M8100-R 12-speed I-Spec
Derailleur
Shimano XT RD-M8100 12-Speed Shadow+
Chain
Shimano SLX CN-HG7100-12
Cassette
Shimano CS-M6100-12 (10-51T)
Brakes
Brake
Magura MT Trail (4-piston front/2-piston rear)
Brake disk
Magura MDR-P6-bolt (203/180mm)
Accessories
Pedals
Crankbrothers stamp 2
Downloads
